This model number indicates that an LM block and an LM rail constitute one set (i.e., the required number of sets when2 rails are used in parallel is 2).Those models equipped with QZ Lubricator cannot have a grease nipple. When desiring a grease nipple for a model attachedwith QZ, contact US
Models THK SVR-R/THK SVS-R

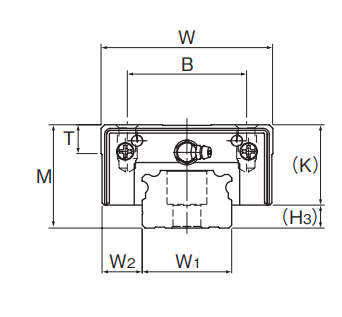

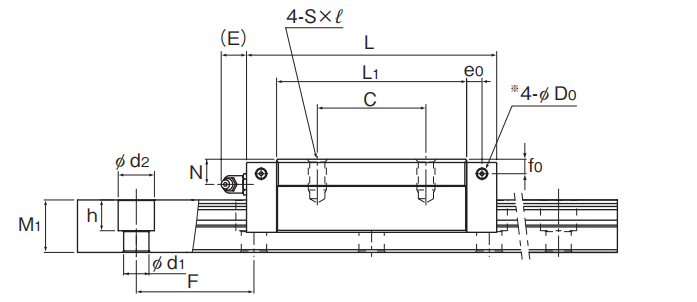

With this type, the LM block has a smaller width(W) and tapped holes. Used in places where the space for table width islimited.
| Part Number | THK SVS30R BLOCK | |
| Rolling Element | Balls | |
| Block Type | R | |
| Overall(mm) | Height M | 38 |
| Width W | 60 | |
| Length L | 98 | |
| Block(mm) | B | 40 |
| T | 9.7 | |
| Rail(mm) | Pitch F | 80 |
| d1xd2xh | 7*11*9 | |
| Basic load rating(Radial) | Dynamic C (kN) | 52 |
| Static C0 (kN) | 70.1 | |
| authorized THK® distributor | sale@wsbearing.com | |
| Brand | THK |
As a professional THK Linear Motion BLOCK exporter and authorized THK® distributor, WS Bearing stocks thousands kindsof THK Linear Motion BLOCK for sale，We can THK guide rail customization export to Singapore–Viet Nam–Malaysia–Indonesia–America etc. Because there are many types of THK products, we can not upload all of them at present. If you have problems about selecting proper bearings for your special applications, please contact us right now
