THK SVR25C Block Linear Guide Slide
The flange of the LM block has tapped holes.
Can be mounted from the top or the bottom.
Can also be used in places where the table cannot have through holes for mounting bolts.
Description

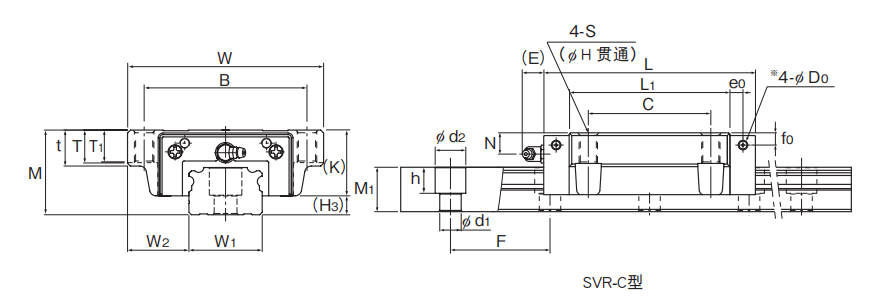

Models THK SVR 25C Block
The total block length L shown in the table is the length with the dust proof parts, code UU or SS.
If other contamination protection accessories or lubricant equipment are installed, the
total block length will increase
| Part Number | THK SVR 25C BLOCK | |
| Rolling Element | Balls | |
| Block Type | C | |
| Overall(mm) | Height M | 31 |
| Width W | 72 | |
| Length L | 82.8 | |
| Block(mm) | B | 59 |
| T | 14.8 | |
| Rail(mm) | Pitch F | 40 |
| d1xd2xh | 6*9.5*8.5 | |
| Basic load rating(Radial) | Dynamic C (kN) | 48.2 |
| Static C0 (kN) | 68.1 | |
