Description

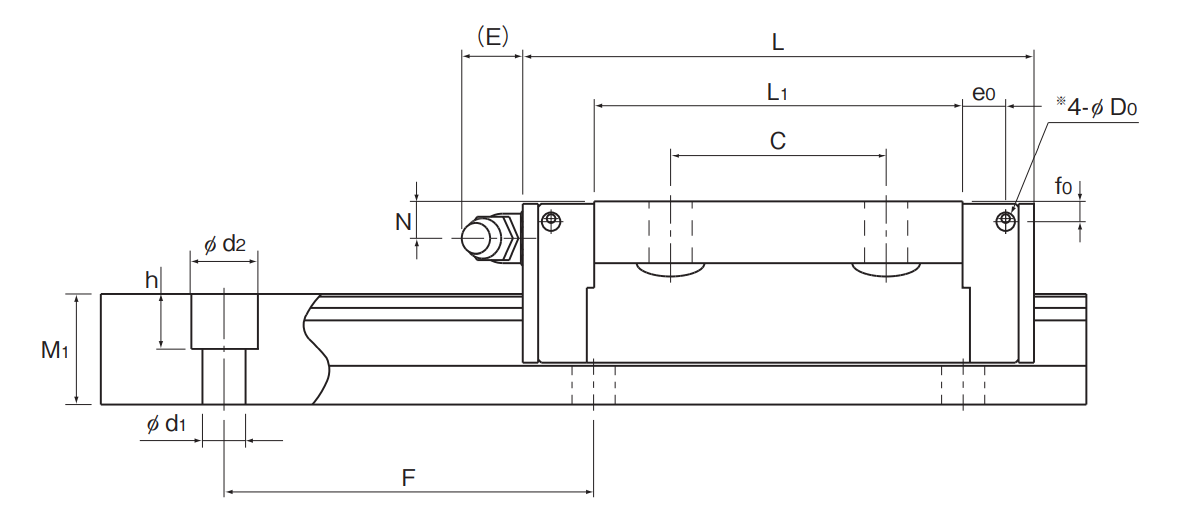

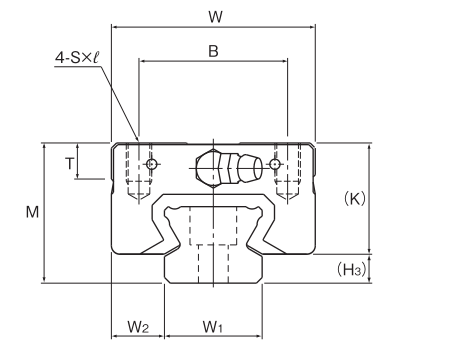

THK SSR Outline Model SSR – Product Overview
With a low mounting height, compact design and a large radial load capacity, this model is optimal for horizontal guides.
| Part Number | THK SSR 25XTB BLOCK | |
| Rolling Element | Balls | |
| Block Type | TB | |
| Overall(mm) | Height M | 33 |
| Width W | 73 | |
| Length L | 83 | |
| Block(mm) | B | 60 |
| T | 10 | |
| Rail(mm) | Pitch F | 60 |
| d1xd2xh | 7*11*9 | |
| Basic load rating(Radial) | Dynamic C (kN) | 31.5 |
| Static C0 (kN) | 36.4 | |
| Brand | THK |
As a professional bearing exporter and authorized THK® distributor, WS Bearing stocks thousands kindsof THK Linear Motion BLOCK for sale，We can THK guide rail customization export to Singapore–Viet Nam–Malaysia–Indonesia–America etc. Because there are many types of THK products, we can not upload all of them at present. If you have problems about selecting proper bearings for your special applications, please contact us right now
